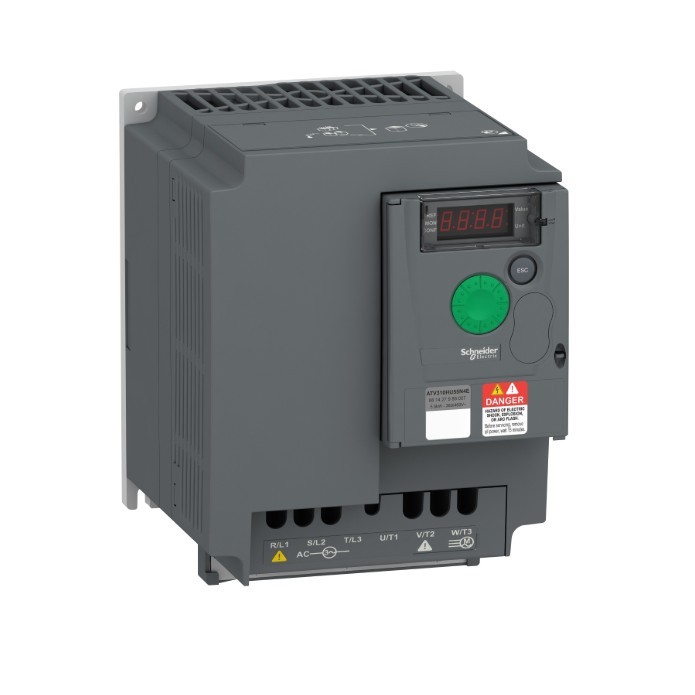

ATV310HU55N4E Variable Speed Drive (Inverter) Schneider 3P 380V 5.5KW

Altivar Easy 310
Inverter Schneider ATV310HU40N4E
Supply : 3P 380V~460V
Motor Power : 5.5KW (7.5HP)
Noise Level : 50dB
Supply Frequency : 50/60 Hz
Tidak dilengkapi dengan EMC Filter
Communication Port Protocol : Modbus
Connector Type : RJ45 (on front face) for Modbus
Physical Interface : 2-wire RS485 for Modbus
Transmission Frame : RTU for Modbus
Line Current : 14.3 A
Output Voltage : 3P 380V … 460V
Supply : Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and shortcircuit protection Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection Analog input : 1 Analog input Type : Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm Discrete Input : 4 Discrete Input Type : Programmable LI1...LI4 24 V 18...30 V Discrete input logic : Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)

Dimensi : 151mm (H) x 140mm (W) x 184mm (D)
